Detailed description

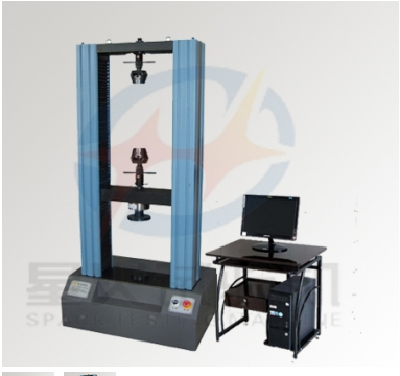

One, electronic universal testing machine applicable scope:

Widely used in wire and cable, textile fabrics, waterproof materials, non-woven fabrics, safety belt, rubber, plastic, film, wire rope, steel, metal wire, metal foil, sheet metal and metal wire and other metal materials and non-metallic materials and parts stretching, compression and bending, tearing and peeling, 90 ~ 180 peel and shear, adhesion, pull-out strength, elongation elongation test, mechanical properties test and some special products.

Two, the main function of electronic universal testing machine:

Mainly for metal and nonmetal materials and parts stretching, compression and bending, tear, 90 degrees, 180 degrees peel peeling, shear, adhesion, pull-out strength, elongation elongation test, special test and some products.

1 automatic stop: after the test sample breaks, the moving beam stops automatically;

2 manual shift: according to the load size automatically switches to the appropriate range, to ensure the accuracy of the measurement data;

3 save conditions: control datasample test conditions can be made into modules, convenient batch test;

4 automatic transmission: the speed of the moving beam can be changed automatically according to the preset program, but also can be changed manually;

5 automatic calibration: the system can automatically realize the calibration accuracy;

6 automatic preservation: the end of the test, the test data and curves automatically saved;

7 process realization: the test process, measurement, display and analysis are completed by the computer;

The 8 batch of test samples on the same parameters, one set after distal;

9 test software: Chinese WINDOWS interface, menu tips, mouse operation;

10 display methods: data and curves with the dynamic display of the test process;

11 curve traversal: after the completion of the test, the curve can be re analyzed, with the mouse can be found in the curve of the corresponding test data;

12 curve selection: according to the need to select the stress - strain, force - displacement, force - time, displacement - time curve for display and print;

13 test report: according to the user requirements of the format of the report and print;

14 limit protection: with programmed control and mechanical two level limit protection;

15 overload protection: when the load exceeds the maximum value of the 3-5%, automatic shutdown;
